Product Details:
|
| Resolution: | 1440(RGB)×900 , WXGA+ | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Brightness: | 300 Cd/m² (Typ.) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo display panel,auo lcd display |
||
AUO M190PW01 V1 LCD Panel 19.0 inch Flat Rectangle Display with 408.24×255.15 mm
M190PW01 V1 Information
| Panel Brand : | AUO |
| Panel Model : | M190PW01 V1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278×19 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 2.12Kgs (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 19.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

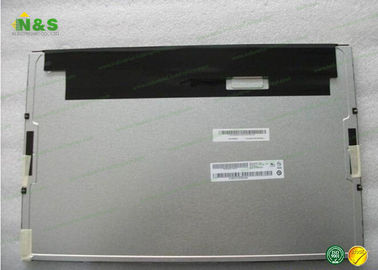

M190PW01 V1 AUO LCD Panel Picture
