Product Details:
|
| Active Area: | 376.32×301.056 Mm | Outline: | 396×324×16.8 Mm |
|---|---|---|---|
| Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% | Response Time: | 3.6/1.4 (Typ.)(Tr/Td); 5 (Typ.)(G To G) |
| Highlight: | auo lcd screen,auo lcd display |
||
Hard coating M190EG02 V4 AUO LCD Panel 19.0 inch with 376.32×301.056 mm Active Area
M190EG02 V4 AUO LCD Panel Specification
| Panel Brand : | AUO |
| Panel Model : | M190EG02 V4 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×16.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td); 5 (Typ.)(G to G) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.00Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.32×305.06 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 11.85/16.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H598QAN01.0 | AUO | 6.0" | 1440×2560 |
| T430HVN01.2 CELL | AUO | 43" | 1920×1080 |
| H495TAN01.2 | AUO | 5.0" | 720×1280 |
| T650QVN04.5 CELL | AUO | 65" | 3840×2160 |
| M320DVN01.0 CELL | AUO | 32.0" | 2560×1440 |
| M238HVN01.0 CELL | AUO | 23.8" | 1920×1080 |
| M238HVN01.2 CELL | AUO | 23.8" | 1920×1080 |
| T320XVN02.F CELL | AUO | 31.5" | 1366×768 |
| T430HVN01.6 CELL | AUO | 43" | 1920×1080 |
| B101EAN01.2 CELL | AUO | 10.1" | 1280×800 |
| H497EAN01.0 | AUO | 5.0" | 768×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

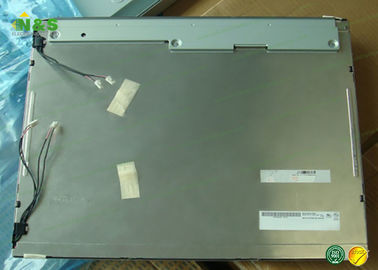

M190EG02 V4 AUO LCD Panel Picture
