Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 170.88×129.6 Mm | Display Mode: | TN, Normally White, Transmissive |
| Display Colors: | 4096 (4-bit) | Lamp Type: | CCFL |
| Outline: | 216×152.4 Mm | Surface: | Antiglare (Haze 25%), Hard Coating (2H), Reflection 5.0% (Max.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Antiglare LQ9D161 Sharp LCD Panel 8.4 inch LCM 640×480 140 150:1 4096 CCFL TTL
Antiglare LQ9D Product Information
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.270 mm (H×V) |
| Pixel Pitch : | 0.267×0.270 mm (H×V) |
| Weight : | 330±10g |
| Surface : | Antiglare (Haze 25%), Hard coating (2H), Reflection 5.0% (Max.) |
| Active Area : | 170.88×129.6 mm (H×V) |
| Bezel Area : | 175.9×134.6 mm (H×V) |
| Outline Dimension : | 216×152.4 mm (H×V) |
| Outline Depth : | 7.3 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 140 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 4096 (4-bit) |
| Response Time : | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45 (Max.)(5 points) |
| Sunlight Readable : | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

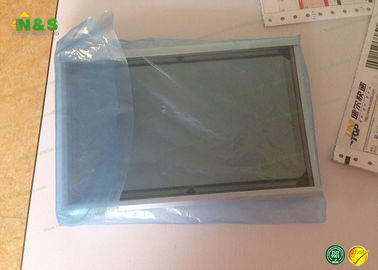

Antiglare LQ9D Picture
