Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 170.88×129.6 Mm | Frequency: | 60Hz |
| Outline: | 242.5×179.4 Mm | Surface: | Antiglare (Haze 25%), Hard Coating (2H) |
| Brightness: | 70 Cd/m² (Typ.) | Display Colors: | 4096 (4-bit) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ9D03B 8.4 inch Sharp LCD Panel LCM 640×480 70 100:1 4096 CCFL TTL
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
LQ9D03B Detail
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.270 mm (H×V) |
| Pixel Pitch : | 0.267×0.270 mm (H×V) |
| Weight : | 480±20g |
| Surface : | Antiglare (Haze 25%), Hard coating (2H) |
| Active Area : | 170.88×129.6 mm (H×V) |
| Bezel Area : | 182.8×142.6 mm (H×V) |
| Outline Dimension : | 242.5×179.4 mm (H×V) |
| Outline Depth : | 8.7 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
| Display Color : | 4096 (4-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/10/30 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45 (Max.)(5 points) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

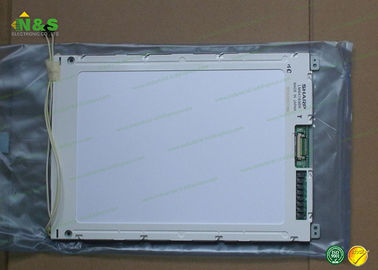

LQ9D03B Picture
