Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.88×129.6 Mm | Display Colors: | 512 (3-bit) |
| Brightness: | 70 Cd/m² (Typ.) | Response Time: | 30/50 (Typ.)(Tr/Td) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Antiglare LQ9D011 Sharp LCD Panel 8.4 inch for Industrial Application
LQ9D011 Specification
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)X480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089X0.270 mm (HXV) |
| Pixel Pitch : | 0.267X0.270 mm (HXV) |
| Weight : | 575 20g |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 170.88X129.6 mm (HXV) |
| Bezel Area : | 182.8X142.6 mm (HXV) |
| Outline Dimension : | 243.5X180 mm (HXV) |
| Outline Depth : | 12 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (2-3.4, 2-R1.7) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Typ.) (Transmissive) |
| Display Color : | 512 (3-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.316; Wy:0.320 |
| White Variation : | 1.25 (Max.)(5 points) |
| Sunlight Readable : | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

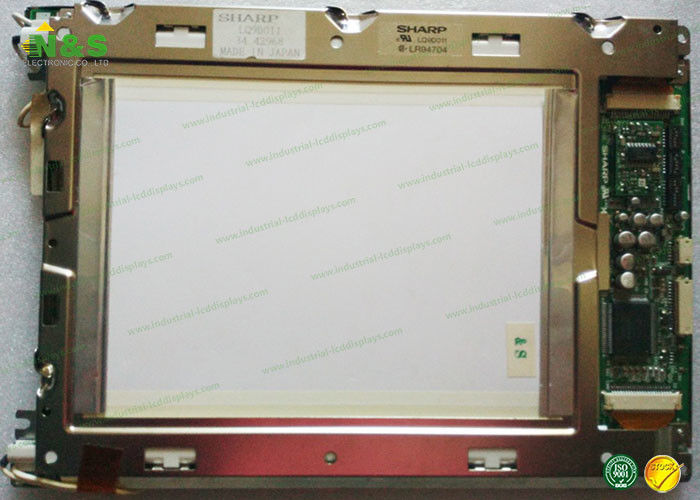

LQ9D011 Picture
