Product Details:
|
| Model:: | TM121SV-02L11 TM121SV-22L11A | Resolution :: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Size:: | 12.1" | Display Mode :: | TN, Normally White, Transmissive |
| Brightness :: | 340 Cd/m² (Typ.) | Signal Interface :: | LVDS (1 Ch, 6-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

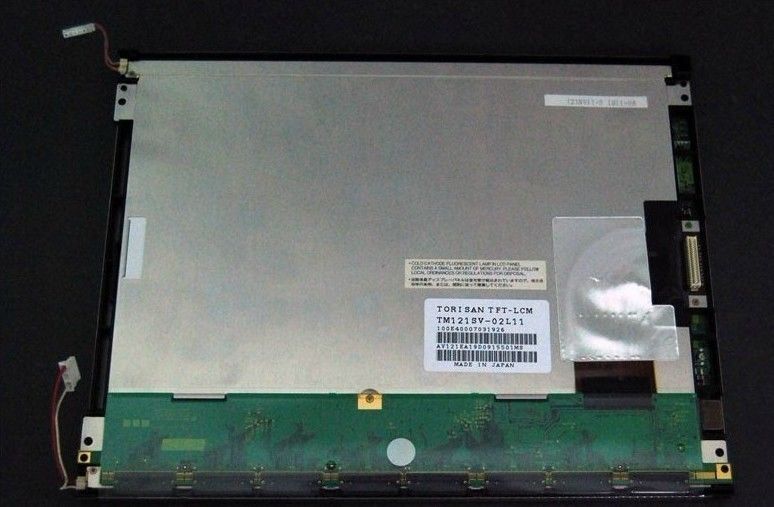

TM121SV-02L11 TM121SV-22L11A Original A+ Grade 12.1 inch LCD Display for Industrial Equipment by Torisan
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 280×218×12 mm |
| Surface : | Antiglare |
| Brightness : | 340 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3V (Typ.) |
Competitive Advantage:
1. We are a leading manufacturer of LCD products for more than 10 years.
2. We got the ISO9001 quality management system certification.
3. We have our own R&D team, and accept OEM order as per customer’s design.
4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.
5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.
6. All products win the certificate of CE,CCC,FCC and RoHS.
7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.
8. 1 year warranty is offered.
Product Application
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Panel Model | Size | Type | Resolution | cd/m2 |
| TM121SV-02L04C | 12.1" | LCM | 800×600 | |
| TM121SV-02L04A | 12.1" | LCM | 800×600 | |
| TM121SV-02L04 | 12.1" | LCM | 800×600 | |
| TM121SV-02L03C | 12.1" | LCM | 800×600 | 100 |
| TM121SV-02L03B | 12.1" | LCM | 800×600 | |
| TM121SV-02L03A | 12.1" | LCM | 800×600 | 100 |
| TM121SV-02L03 | 12.1" | LCM | 800×600 | 100 |
| TM121SV-02L02 | 12.1" | LCM | 800×600 | |
| TM121SV-02L01D | 12.1" | LCM | 800×600 | |
| TM121SV-02L01C | 12.1" | LCM | 800×600 | |
| TM121SV-02L01B | 12.1" | LCM | 800×600 |
