Product Details:
|
| Model:: | TM121SV-02L07/ TM121SV-02L09 | Size: | 12.1" |
|---|---|---|---|
| Resolution :: | 800(RGB)×600 , SVGA | Display Mode :: | TN, Normally White, Transmissive |
| Response Time :: | 35/15 (Typ.)(Tr/Td) | Signal Interface :: | LVDS (1 Ch, 6-bit) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

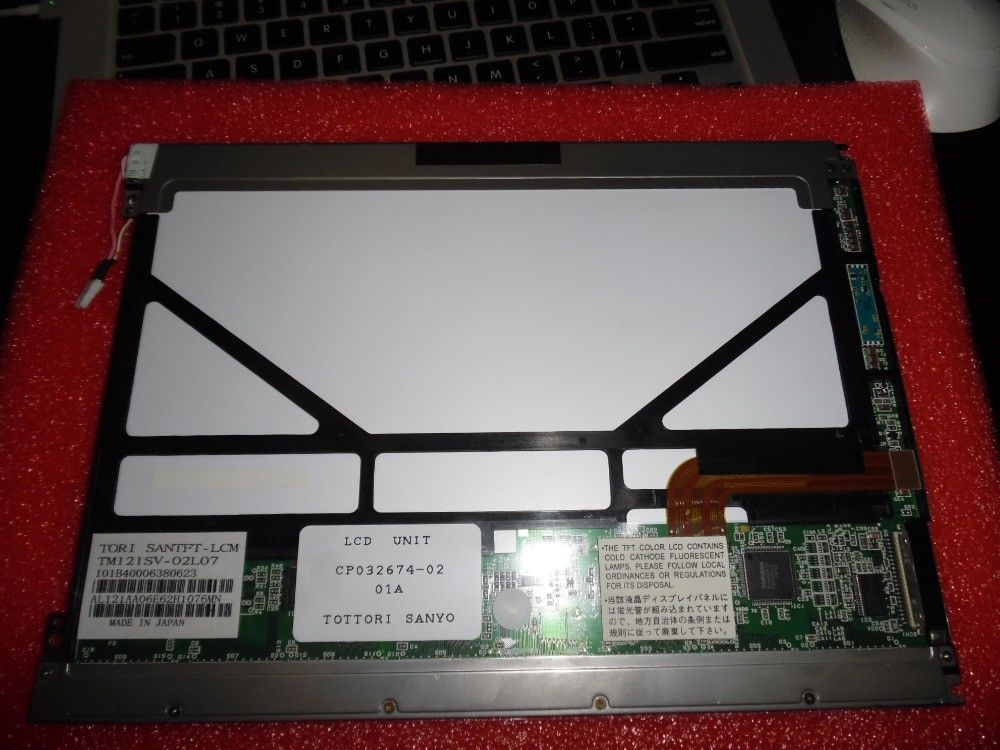

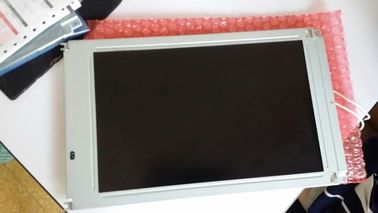

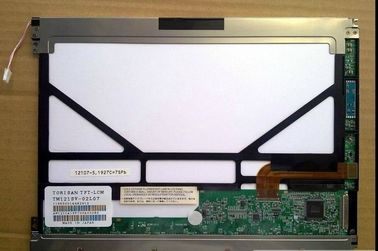

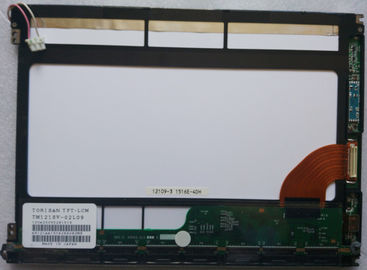

Torisan 12.1" TM121SV-02L07A Matte Laptop LCD Screen TM121SV-02L09
Panel Brand : TORISAN
Panel Model : TM121SV-02L07
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 12.1 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 246×184.5 mm
Outline : 275×199×5.7 mm
Surface : Antiglare
Brightness : 120 cd/m² (Typ.)
Contrast Ratio : 250:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 30/20 (Typ.)(Tr/Td)
Viewing Angle : 45/45/10/30 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL
Signal Interface : LVDS (1 ch, 6-bit) , 20 pins
Input Voltage : 3.3V (Typ.)
| Panel Model | Size | Type | Resolution | cd/m2 |
| TM121SVLAM01-03 | 12.1" | LCM | 800×600 | |
| TM121SV-A04 | 12.1" | LCM | 800×600 | 190 |
| TM121SV-A01 | 12.1" | LCM | 800×600 | 340 |
| TM121SV-22L11A | 12.1" | LCM | 800×600 | 320 |
| TM121SV-02L11A | 12.1" | LCM | 800×600 | 320 |
| TM121SV-02L11 | 12.1" | LCM | 800×600 | 340 |
| TM121SV-02L10 | 12.1" | LCM | 800×600 | |
| TM121SV-02L09 | 12.1" | LCM | 800×600 | 100 |
| TM121SV-02L07H | 12.1" | LCM | 800×600 | 120 |
| TM121SV-02L07G | 12.1" | LCM | 800×600 | |
| TM121SV-02L07F | 12.1" | LCM | 800×600 | |
| TM121SV-02L07E | 12.1" | LCM | 800×600 | |
| TM121SV-02L07D | 12.1" | LCM | 800×600 | |
| TM121SV-02L07C | 12.1" | LCM | 800×600 | |
| TM121SV-02L07B | 12.1" | LCM | 800×600 | |
| TM121SV-02L07A | 12.1" | LCM | 800×600 | |
| TM121SV-02L07 | 12.1" | LCM | 800×600 | 120 |
