Product Details:
|
| Model:: | TM121SV-02L03A | Size: | 12.1" |
|---|---|---|---|
| Resolution :: | 800(RGB)×600 , SVGA | Display Mode :: | TN, Normally White, Transmissive |
| Response Time :: | 35/15 (Typ.)(Tr/Td) | Signal Interface :: | LVDS (1 Ch, 6-bit) |
| Highlight: | lcd display white screen,lcd panel screen |
||

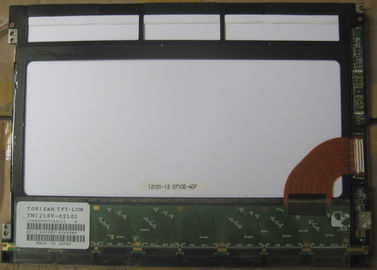

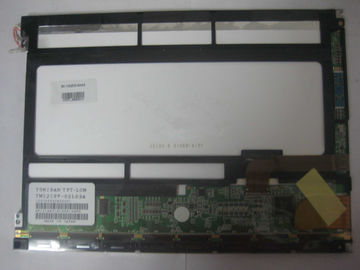

TM121SV -02L03A 12.1 inch Industrial lvds lcd panel screen TM121SV-02L03 TM121SV-02L03B
| Panel Brand : | TORISAN |
| Panel Model : | TM121SV-02L03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 275×199×6.9 mm |
| Surface : | Antiglare |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 250:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
12.1", 800×600, 6-bit, LVDS, 2D, CCFL, Flat, LCM Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 |
| LB121S03-TL01 | 12.1" | LCM | 800×600 | 400 |
| LQ121S1LG45 | 12.1" | LCM | 800×600 | 370 |
| NL8060BC31-28D | 12.1" | LCM | 800×600 | 350 |
| G121SN01 V0 | 12.1" | LCM | 800×600 | 400 |
| LQ121S1LG61 | 12.1" | LCM | 800×600 | 450 |
| G121S1-L01 | 12.1" | LCM | 800×600 | 450 |
| G121SN01 V1 | 12.1" | LCM | 800×600 | 200 |
| LQ121S1LG44 | 12.1" | LCM | 800×600 | 370 |
| LQ121S1LG41 | 12.1" | LCM | 800×600 | 370 |
| LTD121C32S | 12.1" | LCM | 800×600 | 250 |
after sales servixce:
A. Only accept the item we sell
B. Need the list of returns with the product No and Qty
C. The returns need our Bar No., Label, and our test report, Or we could not recognize our products sold.
Payment Terms :
we mostly accept T/T ,paypal ,western union and more .
