Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ121S1DG81 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ121S1DG81 12.1 inch Sharp LCD Panel Normally White for Industrial Application
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery

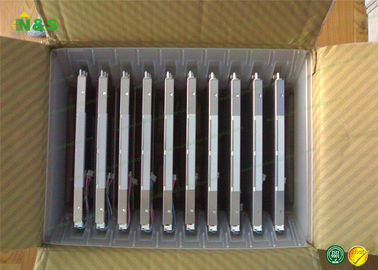

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
LQ121S1DG81
| Panel Brand : | SHARP |
| Panel Model : | LQ121S1DG81 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 246×184.5 mm |
| Outline : | 276×209×11 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 82 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) | |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 246×184.5 mm (H×V) | |
| Bezel Area : | 249.0×187.5 mm (H×V) | |
| Outline Dimension : | 276×209 mm (H×V) | |
| Outline Depth : | 11.0 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |

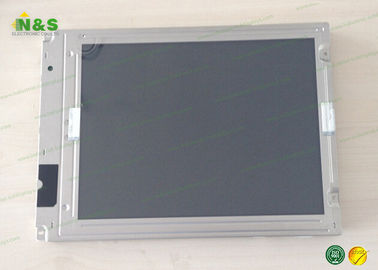

LQ121S1DG81 Picture
