Product Details:
|
| Panel Brand :: | Toshiba Mobile Display | Panel Model :: | LT133EE09500 |
|---|---|---|---|
| Panel Type :: | LTPS TFT-LCD , LCM | Panel Size :: | 13.3 Inch |
| Highlight: | industrial lcd screen,industrial lcd panel |
||

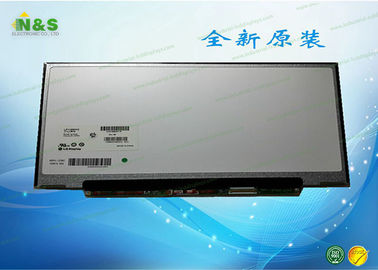

Normally White LT133EE09500 TOSHIBA 13.3 inch for laptop panel LVDS
LT133EE09500 Information
| Panel Size : | 13.3 inch |
|---|---|
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 118 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch : | 0.2148×0.2148 mm (H×V) |
| Weight : | 180g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 293.42×164.97 mm (H×V) |
| Outline Dimension : | 306.3×188.75 mm (H×V) |
| Outline Depth : | 3.5 (Max.) mm |
| Shape Style : | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LT133EE09500 Information
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 35/35/10/20 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
| TFD60W12 | TOSHIBA | 6.0" | 320×234 |
| LTA149D680F | TOSHIBA | 14.9" | 1280×390 |
| LTA065B615A | TOSHIBA | 6.5" | 400×234 |
