Product Details:
|
| Active Area: | 527.04×296.46 Mm | Outline: | 543×317.4×11.7 Mm |
|---|---|---|---|
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Panel Size :: | 23.8 Inch |
| Highlight: | lg display panel,lg lcd display |
||
Hard coating LM238WF1-SLE3 23.8 inch LG LCD Panel for Industrial Application
Product Information:
| Panel Size : | 23.8 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 92 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0915×0.2745 mm (H×V) |
| Pixel Pitch : | 0.2745×0.2745 mm (H×V) |
| Weight : | 2.27/2.39Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 527.04×296.46 mm (H×V) |
| Bezel Area : | 530.2×299.6 mm (H×V) |
| Outline Dimension : | 543×317.4 mm (H×V) |
| Outline Depth : | 8.4/11.7 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Display Mode : | IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

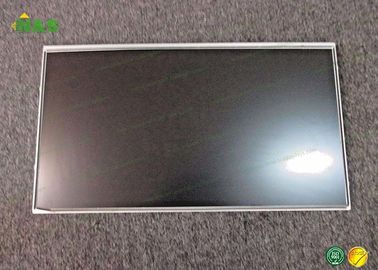

Picture of LM238WF1-SLE3
