Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.88×128.16 Mm | Outline: | 199.5×149×12 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

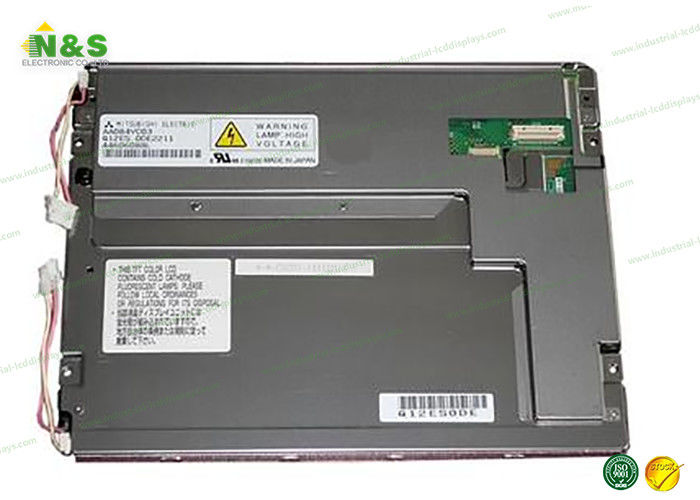

AA084VC03 TFT LCD Module Mitsubishi 8.4 inch LCM 640×480 450 for Industrial Application panel
AA084VC03 Specification
| Panel Size : | 8.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.089×0.267 mm (H×V) |
| Pixel Pitch : | 0.267×0.267 mm (H×V) |
| Weight : | 400g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.88×128.16 mm (H×V) |
| Bezel Area : | 174.9×132.2 mm (H×V) |
| Outline Dimension : | 199.5×149 mm (H×V) |
| Outline Depth : | 11.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 8/27 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.311; Wy:0.327 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA104VJ02--T1 | Mitsubishi | 10.4" | 640×480 |
| AA084XB11--T2 | Mitsubishi | 8.4" | 1024×768 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
