Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ5AW136 5.0 inch SHARP LCM Sharp LCD Panel 320×234 320 60:1 CCFL Analog
LQ5AW136 Specification
| Panel Size : | 5.0 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 79 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1065×0.3195 mm (H×V) |
| Pixel Pitch : | 0.3195×0.3195 mm (H×V) |
| Weight : | 185g (Max.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 102.2×74.8 mm (H×V) |
| Bezel Area : | 109.5×80.8 mm (H×V) |
| Outline Dimension : | 126.8×89.6 mm (H×V) |
| Outline Depth : | 16.5±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 60 : 1 (Min.) (Transmissive) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

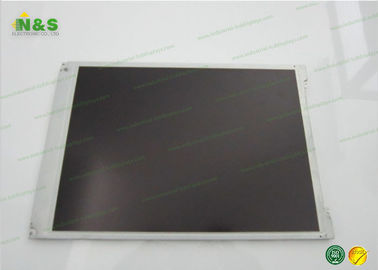

LQ5AW136 Picture
