Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.0 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 197.76×111.735 Mm | Outline: | 210.7×126.4×4.25 Mm |
| High Light: | tft lcd panel,tft lcd display module |
||

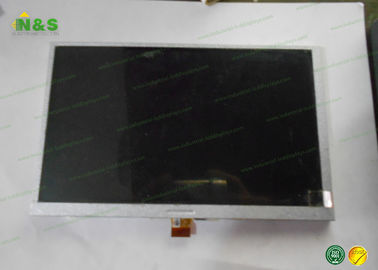

Normally White 9.0 inch HV056WX2-100 TFT LCD ModuleHannStar with 197.76×111.735 mm
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HSD090ICW1-A00 Information
| Panel Size : | 9.0 inch |
| Dot Resolution : | 640(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.103×0.4775 mm (H×V) |
| Pixel Pitch : | 0.309×0.4775 mm (H×V) |
| Weight : | 273g (Typ.) |
| Active Area : | 197.76×111.735 mm (H×V) |
| Bezel Area : | 201.0×114.8 mm (H×V) |
| Outline Dimension : | 210.7×126.4 mm (H×V) |
| Outline Depth : | 4.1±0.15 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.315; Wy:0.346 |
| White Variation : | 1.43 (Max.)(9 points) |
| Transmissivity : | 9.4% (Typ.)(with Polarizer) |
| Sunlight Readable : | N |
