Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 4.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×640 , VGA | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
4.0 inch LS040V7DD01 SHARP 60.48×80.64 mm Active Area for Handheld Product panel
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LS040V7DD01 Specification
| Panel Size : | 4.0 inch | ||||||||||||
| Dot Resolution : | 480(RGB)×640 (VGA) | ||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||
| Pixel Density : | 201 PPI | ||||||||||||
| Aspect Ratio : | 3:4 (H:V) | ||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||
| Dot Pitch : | 0.042×0.126 mm (H×V) | ||||||||||||
| Pixel Pitch : | 0.126×0.126 mm (H×V) | ||||||||||||
| Weight : |
| ||||||||||||
|
| ||||||||||||
| Active Area : | 60.48×80.64 mm (H×V) | ||||||||||||
| Outline Dimension : | 69.3×96 mm (H×V) | ||||||||||||
| Outline Depth : | 4.2 mm | ||||||||||||
| Landscape or Portrait : | Portrait type | ||||||||||||
| Touch Panel : |
| ||||||||||||
|
| ||||||||||||
| Brightness : | 60 cd/m² (Typ.) | ||||||||||||
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) | ||||||||||||
| Contrast Ratio : | 5:1 (Typ.) (Reflective) | ||||||||||||
| Display Color : | 262K (6-bit) | ||||||||||||
| Response Time : | 30/50 (Typ.)(Tr/Td) | ||||||||||||
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥10) (L/R/U/D) | ||||||||||||
| Reflectance Ratio : | 6% (Typ.) | ||||||||||||
| Sunlight Readable : |
|

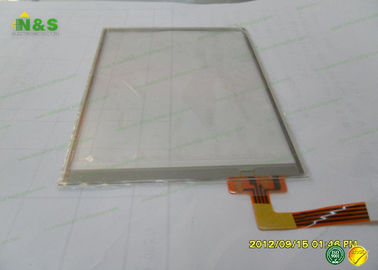

LS040V7DD01 Picture
