Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×800 , WVGA | Display Mode: | ASV, Normally Black, Transflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LS035Y8DX04A 3.5 inch Sharp LCD Panel for Mobile Phone panel
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
LS035Y8DX04A Detail
| Panel Size : | 3.5 inch | ||||||||||||
| Dot Resolution : | 480(RGB)×800 (WVGA) | ||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||
| Pixel Density : | 268 PPI | ||||||||||||
| Aspect Ratio : | 3:5 (H:V) | ||||||||||||
| Form Factor : | Flat Rectangle Display | ||||||||||||
| Dot Pitch : | 0.0315×0.0945 mm (H×V) | ||||||||||||
| Pixel Pitch : | 0.0945×0.0945 mm (H×V) | ||||||||||||
| Weight : |
|
||||||||||||
| Active Area : | 45.36×75.6 mm (H×V) | ||||||||||||
| Bezel Area : | 46.36×76.6 mm (H×V) | ||||||||||||
| Outline Dimension : | 51.16×87.47 mm (H×V) | ||||||||||||
| Outline Depth : | 1.74/3.04 (Typ./Max.) mm | ||||||||||||
| Landscape or Portrait : | Portrait type | ||||||||||||
| Touch Panel : |
|
||||||||||||
|
|
||||||||||||
| Brightness : | 400 cd/m² (Typ.) | ||||||||||||
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) | ||||||||||||
| Contrast Ratio : | 10:1 (Typ.) (Reflective) | ||||||||||||
| Display Color : | 16.7M (8-bit) | ||||||||||||
| Color Gamut : | 50% NTSC (CIE1931) | ||||||||||||
| Response Time : | 11/24 (Typ.)(Tr/Td) | ||||||||||||
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) | ||||||||||||
| Viewing Direction : | Symmetry | ||||||||||||
| White color Chromaticity : |
|
||||||||||||
| White Variation : | 1.25 (Max.)(9 points) | ||||||||||||
| Reflectance Ratio : | 1.5% (Typ.) | ||||||||||||
| Sunlight Readable : | Y |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

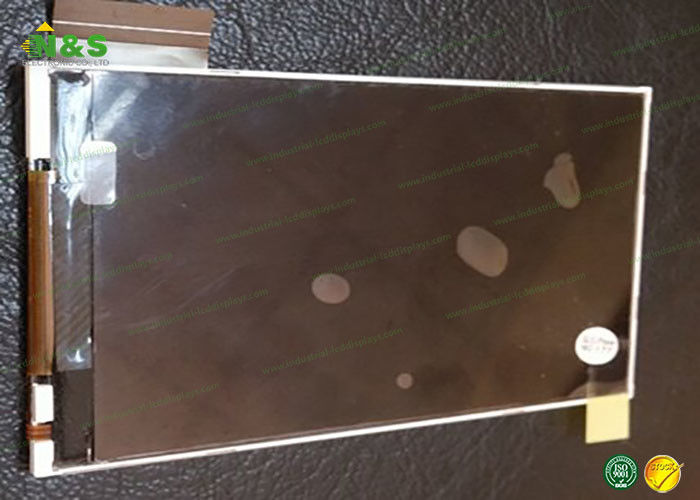

LS035Y8DX04A Picture
