Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 3.0 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
Normally White LS030Q7DH01 3.0 inch SHARP Sharp LCD Panel with 45.72×60.96 mm
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
LS030Q7DH01 Detail
| Panel Size : | 3.0 inch | |||||||||||
| Dot Resolution : | 240(RGB)×320 (QVGA) | |||||||||||
| Pixel Configuration : | RGB Vertical Stripe | |||||||||||
| Pixel Density : | 133 PPI | |||||||||||
| Aspect Ratio : | 3:4 (H:V) | |||||||||||
| Form Factor : | Flat Rectangle Display | |||||||||||
| Dot Pitch : | 0.0635(H)×0.1905 mm (H×V) | |||||||||||
| Weight : | 33/38g (Typ./Max.) | |||||||||||
| Surface : |
|
|||||||||||
| Active Area : | 45.72×60.96 mm (H×V) | |||||||||||
| Outline Dimension : | 54.5×75 mm (H×V) | |||||||||||
| Outline Depth : | 4.0 mm | |||||||||||
| Landscape or Portrait : | Portrait type | |||||||||||
| Touch Panel : | Embeded (4-wire Resistive) | |||||||||||
| Display Mode : |
|
|||||||||||
|
100 cd/m² (Typ.) | |||||||||||
| Contrast Ratio : | 70 : 1 (Typ.) (Transmissive) | |||||||||||
| Contrast Ratio : | 2.5:1 (Typ.) (Reflective) | |||||||||||
| Display Color : | 262K (6-bit) | |||||||||||
| Color Gamut : | 65% NTSC (CIE1931) | |||||||||||
| Response Time : | 30/50 (Typ.)(Tr/Td) | |||||||||||
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) | |||||||||||
| Viewing Direction : | 6 o'clock | |||||||||||
| White color Chromaticity : | Wx:0.300; Wy:0.330 | |||||||||||
| Reflectance Ratio : | 5.0/7.0% (Min./Typ.) | |||||||||||
| Sunlight Readable : |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

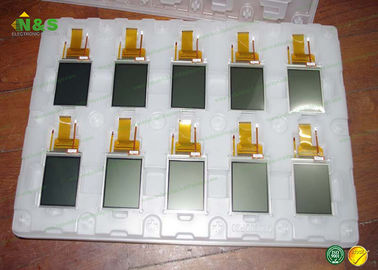

LS030Q7DH01 Picture
