Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 4.5 Inch |
|---|---|---|---|
| Resolution: | 720(RGB)×1280 , WXGA | Display Mode: | Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LS045K3SX05 4.5 inch CG-Silicon Sharp LCD Pane LCM 720×1280 330 800:1 16.7M WLED MIPI
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
LS045K3SX05 Specification
| Panel Size : | 4.5 inch | ||||||||
| Dot Resolution : | 720(RGB)×1280 (WXGA) | ||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||
| Pixel Density : | 328 PPI | ||||||||
| Aspect Ratio : | 9:16 (H:V) | ||||||||
| Form Factor : | Flat Rectangle Display | ||||||||
| Dot Pitch : | 0.02575×0.07725 mm (H×V) | ||||||||
| Pixel Pitch : | 0.07725×0.07725 mm (H×V) | ||||||||
| Weight : | TBD | ||||||||
| Active Area : | 55.62×98.88 mm (H×V) | ||||||||
| Outline Dimension : | 58.42×108 mm (H×V) | ||||||||
| Outline Depth : | 1.4 mm | ||||||||
| Landscape or Portrait : | Portrait type | ||||||||
| Touch Panel : | Without | ||||||||
| Display Mode : | Normally Black, Transmissive | ||||||||
|
|
330 cd/m² (Typ.) | ||||||||
|
800 : 1 (Typ.) (Transmissive) | ||||||||
| Display Color : | 16.7M (8-bit) | ||||||||
| Color Gamut : | 70% NTSC (CIE1931) | ||||||||
| Response Time : | TBD | ||||||||
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) | ||||||||
| Viewing Direction : | Symmetry | ||||||||
| White color Chromaticity : | Wx:0.310; Wy:0.320 | ||||||||
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||||||||
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

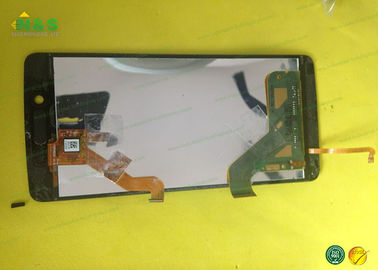

LS045K3SX05 Picture
