Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 400(RGB)×240 , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 108×64.8 Mm | Outline: | 120.6×75.2×16.8 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

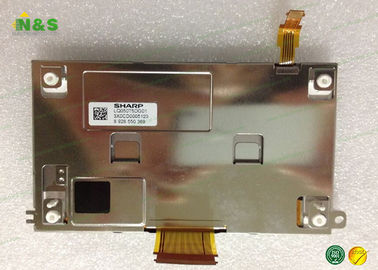

Normally White LQ050T5DG01 Sharp LCD Panel SHARP 5.0 inch LCM 400×240 with 108×64.8 mm
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LQ050T5DG01 Information
| Panel Size : | 5.0 inch |
| Dot Resolution : | 400(RGB)×240 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 110g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 108×64.8 mm (H×V) |
| Bezel Area : | 110.0×68.9 mm (H×V) |
| Outline Dimension : | 120.6×75.2 mm (H×V) |
| Outline Depth : | 16.5±0.3 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.1) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity : | Wx:0.295; Wy:0.310 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
| LM32019P5R | SHARP | 5.7" | 320×240 |
| LM32004 | SHARP | 5.7" | 320×240 |
| LM80C209 | SHARP | 11.3" | 800×600 |
