Product Details:
|
| Panel Type: | CG-Silicon , LCM | Panel Size: | 6.0 Inch |
|---|---|---|---|
| Resolution: | 600(BW)×800 , SVGA | Display Mode: | TN, Normally White, Reflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
6.0 inch LS060S2UD01 Sharp LCD Panel with 91.8×122.4 mm Active Area
LS060S2UD01 Specification
| Panel Size : | 6.0 inch | ||||||||
| Dot Resolution : | 600(BW)×800 (SVGA) | ||||||||
| Pixel Density : | 166 PPI | ||||||||
| Aspect Ratio : | 3:4 (H:V) | ||||||||
| Form Factor : | Flat Rectangle Display | ||||||||
| Dot Pitch : | 0.076×0.153 mm (H×V) | ||||||||
| Pixel Pitch : | 0.153×0.153 mm (H×V) | ||||||||
| Weight : | 36g | ||||||||
| Active Area : | 91.8×122.4 mm (H×V) | ||||||||
| Outline Dimension : | 96.8×132.8 mm (H×V) | ||||||||
| Outline Depth : | 1.23 mm | ||||||||
| Landscape or Portrait : | Portrait type | ||||||||
| Touch Panel : | Without | ||||||||
| Display Mode : | TN, Normally White, Reflective | ||||||||
| Contrast Ratio : | 15:1 (Typ.) (Reflective) | ||||||||
|
Grayscale (4-bit) | ||||||||
| Response Time : | 10/20 (Typ.)(Tr/Td) | ||||||||
| Viewing Angle : | 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D) | ||||||||
| White color Chromaticity : | Wx:0.310; Wy:0.330 | ||||||||
| Reflectance Ratio : | 16% (Typ.) | ||||||||
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

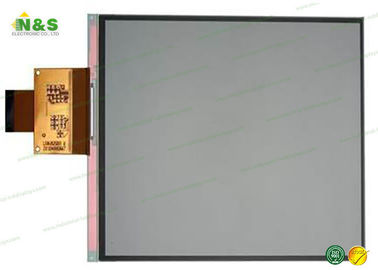

LS060S2UD01 Picture
