Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.7 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×640 , VGA | Display Mode: | Normally Black, Transflective |
| Active Area: | 56.16×74.88 Mm | Outline: | 65×89.2×6.4 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

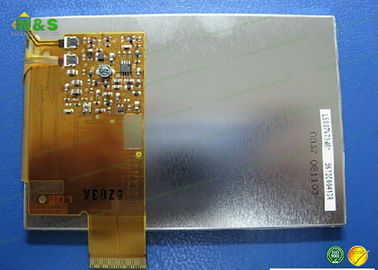

3.7 inch LS037V7DW01 Sharp LCD Panel SHARP 165 Normally Black 200:1 262K WLED TTL
LS037V7DW01 Information
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 48g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Bezel Area : | 59.8×78.5 mm (H×V) |
| Outline Dimension : | 65×89.2 mm (H×V) |
| Outline Depth : | 4.4/6.4 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | Normally Black, Transflective |
| Brightness : | 165 cd/m² (Typ.) |
| Contrast Ratio : | 200 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 2:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 35% NTSC (CIE1931) |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White Variation : | 1.67 (Max.)(9 points) |
| Reflectance Ratio : | 2/4% (Min.Typ.) |
| Sunlight Readable : | Y |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
