Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 170.4×127.8 Mm | Outline: | 199.5×149.5 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

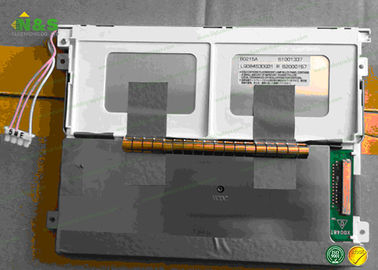

8.4 inch LQ084S3DG01 Sharp LCD Panel SHARP 800×600 350 320:1 Normally White
LQ084S3DG01 Information
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 405g (Max.) |
| Surface : | Antireflection |
| Active Area : | 170.4×127.8 mm (H×V) |
| Outline Dimension : | 199.5×149.5 mm (H×V) |
| Outline Depth : | 11.6 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 320 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/45/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
| LM32019P5R | SHARP | 5.7" | 320×240 |
| LM32004 | SHARP | 5.7" | 320×240 |
