Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 53.64×71.52 Mm | Outline: | 65×86.2×4.2 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

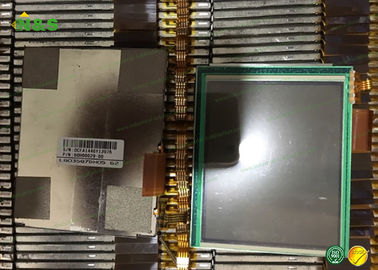

LQ035Q7DH05 Sharp LCD Panel SHARP 3.5 inch LCM 240×320 Normally White for Handheld Product panel
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
LQ035Q7DH05 Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 45g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.4×75.2 mm (H×V) |
| Outline Dimension : | 65×86.2 mm (H×V) |
| Outline Depth : | 4.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 110 cd/m² (Typ.) |
| Contrast Ratio : | 95 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 3:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 29% NTSC (CIE1931) |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/50/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Reflectance Ratio : | 2.5/4% (Min./Typ.) |
| Sunlight Readable : | Y |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM089HB1T04 | SHARP | 8.9" | 640×240 |
| LM077VS1T01 | SHARP | 7.7" | 640×480 |
| LM64C081 | SHARP | 9.4" | 640×480 |
| LM64C352 | SHARP | 10.4" | 640×480 |
| LM80C032 | SHARP | 10.4" | 800×600 |
| LM80C20PA | SHARP | 11.3" | 800×600 |
| LM80C219 | SHARP | 11.3" | 800×600 |
