Product Details:
|
| Contrast Ratio: | 300:1 (Typ.) | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 Pins |
| Highlight: | black and white lcd display,lcd panel screen |
||
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | TBD |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 71.88×54.36 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
<
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.333 |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable : |
N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM045YYSP02 | Tianma | 4.5" | 480×854 |
| TM016XYHP01 | Tianma | 1.6" | 256×320 |
| TM050JYSP01 | Tianma | 5.0" | 720×1280 |
| TL055VGXP01 | Tianma | 5.5" | 1080×1920 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| TL050JGXP01 | Tianma | 5.0" | 720×1280 |

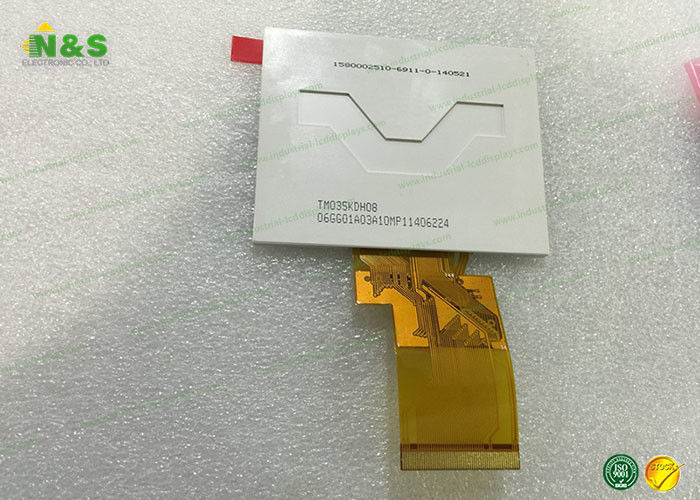

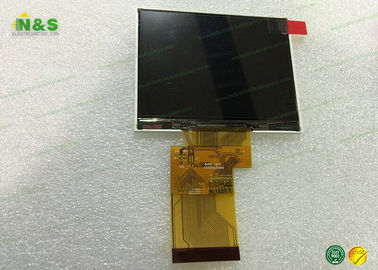

TM035KDH08 Picture
