Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 118 PPI |
| Aspect Ratio : | 17:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.07175×0.21525 mm (H×V) |
| Pixel Pitch : | 0.21525×0.21525 mm (H×V) |
| Weight : | 253/270g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 220.416×129.15 mm (H×V) |
| Bezel Area : | 223.42×132.15 mm (H×V) |
| Outline Dimension : | 235×145.8 mm (H×V) |
| Outline Depth : | 5.5/5.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

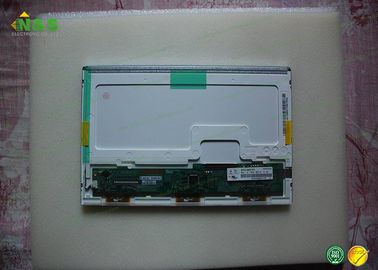

HSD100IFW1-A00 Picture
