Product Details:
|
| Panel Brand: | BOE | Panel Model: | HT150X02-100 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.0 Inch |
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
15.0 inch HT150X02-100 BOE LCD Panel with 304.128×228.096 mm
HT150X02-100 Detail
| Panel Brand : | BOE | |
| Panel Model : | HT150X02-100 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 15.0 inch | |
| Resolution : | 1024(RGB)×768 , XGA | |
| Display Mode : | TN, Normally White, Transmissive | |
| Active Area : | 304.128×228.096 mm | |
| Outline : | 326.5×253.5×11.9 mm | |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) | |
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 500:1 (Typ.) | |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 60% | |
| Response Time : | 2/6 (Typ.)(Tr/Td) | |
| Viewing Angle : | 75/75/70/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins | |
|
3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
| BV050HDE-N47 | BOE | 5.0" | 720×1280 |
| BP096WX2-100 | BOE | 9.6" | 800×1280 |
| HV320WHB-N82 | BOE | 31.5" | 1366×768 |
| HV550QUB-B05 | BOE | 55" | 3840×2160 |
| BV047SQE-N40 | BOE | 4.7" | 540×960 |
| TT101WSQ-N10 | BOE | 10.1" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.20Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.4/11.9 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

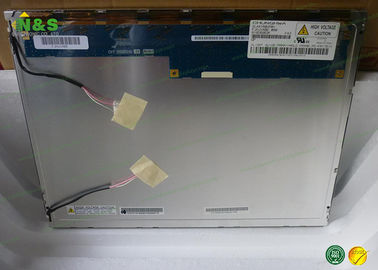

HT150X02-100 Picture
