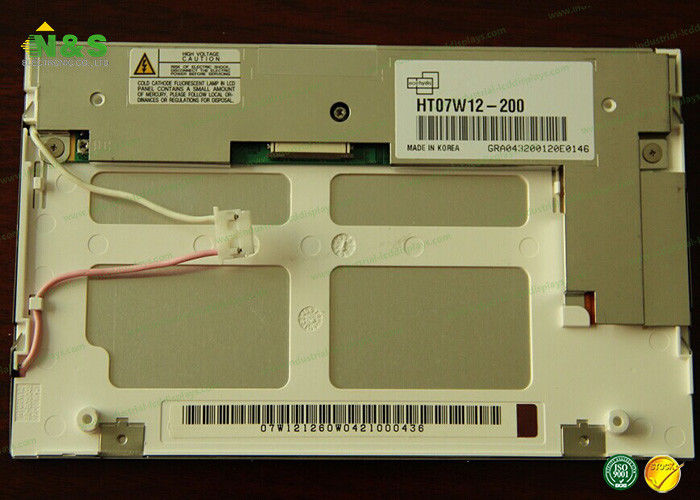

Product Details:
|
| Contrast Ratio: | 250:1 (Typ.) | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | Analog RGB + Composite Video (NTSC/PAL) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.372 mm (H×V) |
| Pixel Pitch : | 0.321×0.372 mm (H×V) |
| Weight : | 210g (Max.) |
| Surface : | Antiglare, Hard coating |
| Active Area : | 154.08×87.05 mm (H×V) |
| Bezel Area : | 157.4×90.4 mm (H×V) |
| Outline Dimension : | 167×102 mm (H×V) |
| Outline Depth : | 12.0/12.5 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.295; Wy:0.315 |
| White Variation : | 1.20 (Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HVT20QV1 | HYDIS | 2.0" | 240×320 |
| HVT15QC1-D00 | HYDIS | 1.5" | 240×320 |
| HVA37WV1-DE0 | HYDIS | 3.7" | 480×800 |
| HVA35WV1-D01 | HYDIS | 3.5" | 480×800 |
| HVA35FV1 | HYDIS | 3.5" | 480×854 |
| HVA32WV1-D00 | HYDIS | 3.2" | 480×800 |
| HV121X02-100 | HYDIS | 12.1" | 1024×768 |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
