Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 , WSVGA | Display Mode: | TN, Normally White, Transmissive |
| Surface: | Antiglare, Hard Coating (3H) | Signal Interface: | LVDS (1 Ch, 6-bit) , 40 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||

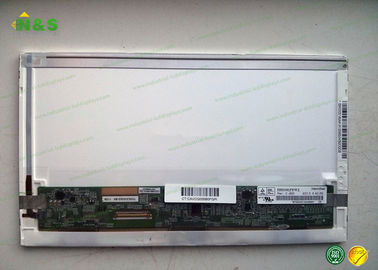

HSD101PFW2-B00 10.1 inch HannStar Normally White with 222.72×125.28 mm
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 117 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch : | 0.2175×0.2088 mm (H×V) |
| Weight : | 175/185g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 222.72×125.28 mm (H×V) |
| Bezel Area : | 225.72×128.26 mm (H×V) |
| Outline Dimension : | 235×143 mm (H×V) |
| Outline Depth : | 4.9/5.2 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Max.)(5/13 points) |
| Sunlight Readable : | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
| HSD047BHW1-D00 | HannStar | 4.7" | 720×1280 |
| HSD047BMW1-C00 | HannStar | 4.7" | 540×960 |
| HSD045BMW3-D00 | HannStar | 4.5" | 540×960 |
