Product Details:
|
| Panel Brand: | NEC | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Panel Size: | 10.1 Inch | Resolution: | 640(RGB)×480 , VGA |
| Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NEC NL6448AC32-01 LCD Panel 10.1 inch LCM 640×480 70 150:1 262K CCFL TTL
NL6448AC32-01 Detail
| Panel Size : | 10.1 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 79 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.321 mm (H×V) |
| Pixel Pitch : | 0.321×0.321 mm (H×V) |
| Weight : | 553/579g (Typ./Max.) |
| Active Area : | 205.44×154.08 mm (H×V) |
| Bezel Area : | 209.0×158.0 mm (H×V) |
| Outline Dimension : | 264.2×180.2 mm (H×V) |
| Outline Depth : | 9.06 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 55% NTSC (CIE1931) |
| Response Time : | 40 (Max.)(Tr+Td) |
| Viewing Angle : | 45/45/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| SMA058HRG1 | E Ink | 5.8" | 600×448 |
| SMA058H7G1 | E Ink | 5.8" | 600×448 |
| ED035OC1 | E Ink | 3.5" | 360×600 |
| ET014TT1 | E Ink | 1.43" | 128×296 |
| TD015OC1 | E Ink | 1.54" | 200×200 |
| ED060XC3 | E Ink | 6.0" | 758×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

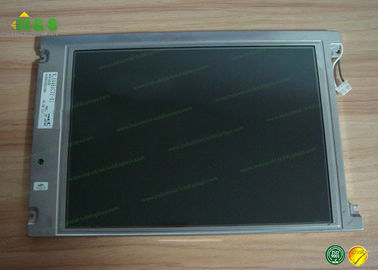

NL6448AC32-01 Picture
