Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Surface: | Antiglare, Hard Coating (3H) |
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50% | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 60 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||

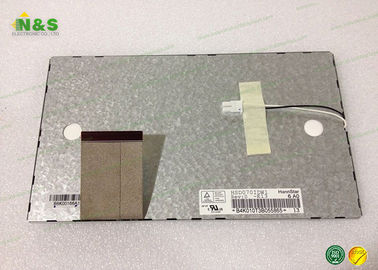

HSD070IDW1-E13 HannStar 7.0 inch WLED, Flat, LCM Hot Model Normally White
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.064×0.1805 mm (H×V) |
| Pixel Pitch : | 0.192×0.1805 mm (H×V) |
| Weight : | 160g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 153.6×86.64 mm (H×V) |
| Bezel Area : | 156.0×90.1 mm (H×V) |
| Outline Dimension : | 164.9×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
HSD070IDW1-E13 Information
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 5/20 (Typ.)(Tr/Td); |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
