Product Details:
|
| Panel Brand: | Mitsubishi | Panel Model: | AA121XK04 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | tft lcd screen,tft lcd display module |
||
AA121XK04 Mitsubishi LCD Panel 12.1 inch LCM 1024×768 420 550:1 262K/16.7M WLED LVDS
We can do for You:
1.Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
AA121XK04 Mitsubishi LCD Panel Detail
| Panel Brand : | Mitsubishi |
| Panel Model : | AA121XK04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 280×210×12.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 420 cd/m² (Typ.) |
| Contrast Ratio : | 550:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 8-bit) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 750g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.0×187.5 mm (H×V) |
| Outline Dimension : | 280×210 mm (H×V) |
| Outline Depth : | 12.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
| AA065VE11-DA-01 | Mitsubishi | 6.5" | 640×480 |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA104VJ02--T1 | Mitsubishi | 10.4" | 640×480 |
| AA084XB11--T2 | Mitsubishi | 8.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

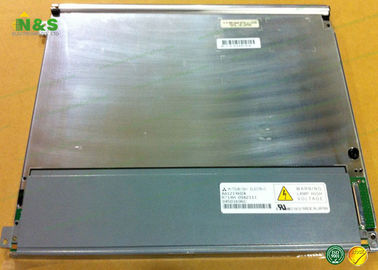

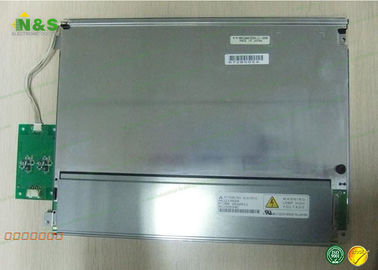

Picture of AA121XK04 Mitsubishi LCD Panel
