Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ10D362 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
LQ10D362 Sharp LCD Panel 10.4 inch 211.2×158.4 mm Active Area
LQ10D362 Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ10D362 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 246.5×179.4 mm | |
| Display Colors : | 262K (6-bit) | |
| Lamp Type : | Without Driver | |
| 5.0V (Typ.)(VCC) |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.110×0.330 mm (H×V) | |
| Pixel Pitch : | 0.330×0.330 mm (H×V) | |
| Active Area : | 211.2×158.4 mm (H×V) | |
| Bezel Area : | 216.2×163.4 mm (H×V) | |
| 246.5×179.4 mm (H×V) | |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

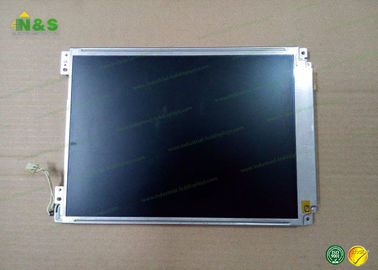

LQ10D362 Picture
