LQ10D34G Sharp lcd panel module , Normally White replacement lcd screen LCM 640×480

10.4 inch LQ10D34G Sharp LCD Panel Normally White LCM 640×480 0 100:1 262K No B/L TTL

LQ10D34G Specification

Panel Brand :	SHARP
Panel Model :	LQ10D34G
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	10.4 inch
Resolution :	640(RGB)×480 , VGA
Display Mode :	TN, Normally White, Transmissive
Active Area :	211.2×158.4 mm
Outline :	265×195×8.5 mm
Surface :	Antiglare (Haze 25%), Hard coating (2H), Antireflection
Brightness :	0 cd/m²
Contrast Ratio :	100:1 (Min.)
Display Colors :	262K (6-bit)
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	35/35/10/30 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :	No B/L
Signal Interface :	Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage :	5.0V (Typ.)(VCC)

Panel Size :	10.4 inch
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	76 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.110×0.330 mm (H×V)
Pixel Pitch :	0.330×0.330 mm (H×V)
Weight :	420g (Typ.)
Surface :	Antiglare (Haze 25%), Hard coating (2H), Antireflection
Active Area :	211.2×158.4 mm (H×V)
Bezel Area :	216.2×163.4 mm (H×V)
Outline Dimension :	265×195 mm (H×V)
Outline Depth :	8.0±0.5 mm
Holes & Brackets :	Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

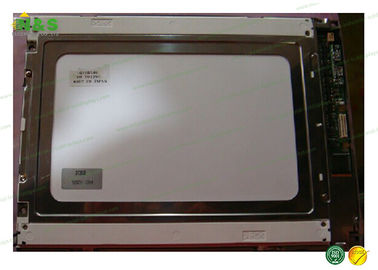

LQ10D34G Picture
