VGA LCM LQ104V1DW02 Sharp LCD Panel with 211.2×158.4 mm Active Area

LQ104V1DW02 10.4 inch Sharp LCD Panel with 211.2×158.4 mm Active Area

LQ104V1DW02 Detail

Panel Brand :	SHARP
Panel Model :	LQ104V1DW02
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	10.4 inch
Resolution :	640(RGB)×480 , VGA
Display Mode :	ASV, Normally Black, Transmissive
Active Area :	211.2×158.4 mm
Outline :	246.5×179.4×15.5 mm
Surface :	Antiglare, Hard coating (3H), Antireflection
Brightness :	380 cd/m² (Typ.)
Contrast Ratio :	450:1 (Typ.)
Display Colors :	262K (6-bit)
Response Time :	12/13 (Typ.)(Tr/Td)
Viewing Angle :	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :	2 pcs CCFL Without Driver
Signal Interface :	Parallel RGB (1 ch, 6-bit) , 31 pins
Input Voltage :	3.3/5.0V (Typ.)(VCC)

Our Services

Payment:

(1) Bank transfer , Western Union , T/T, Paypal are accepted.

(2) If any problem of payment, you can contact with us.

Shipment:

(1) Worldwide shipping. Any delivery way you want to choose, please contact us.

(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

(4) Delivery time is approximate:

------Via DHL, Fedex, UPS: 3-7working days

------Via EMS:7-15 working days

------Via Direct Express Line:1-3 working days.

Panel Size :	10.4 inch
Dot Resolution :	640(RGB)×480 (VGA)
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	76 PPI
Aspect Ratio :	4:3 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.110×0.330 mm (H×V)
Pixel Pitch :	0.330×0.330 mm (H×V)
Weight :	620g (Max.)
Surface :	Antiglare, Hard coating (3H), Antireflection
Active Area :	211.2×158.4 mm (H×V)
Outline Dimension :	246.5×179.4 mm (H×V)
Outline Depth :	15.5 (Max.) mm
Holes & Brackets :	Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel
Landscape or Portrait :	Landscape type
Touch Panel :	Without

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

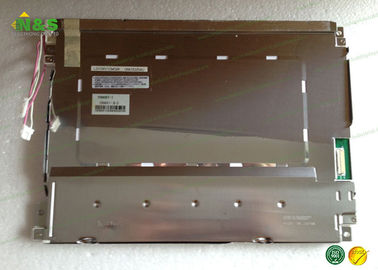

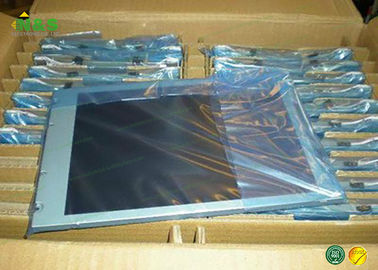

LQ104V1DW02 Picture
