Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ104V1DG71 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ104V1DG71 Normally White Sharp LCD Panel 10.4 inch LCM with 211.2×158.4 mm Active Area
LQ104V1DG71 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ104V1DG71 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
| TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Surface : | ||
| Brightness : | ||
| Contrast Ratio : | ||
| 262K (6-bit) | |
| Response Time : | ||
| Viewing Angle : | ||
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Parallel RGB (1 ch, 6-bit) , 31 pins |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.110×0.330 mm (H×V) | |
| Pixel Pitch : | 0.330×0.330 mm (H×V) | |
| Active Area : | 211.2×158.4 mm (H×V) | |
| Landscape or Portrait : | Landscape type |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

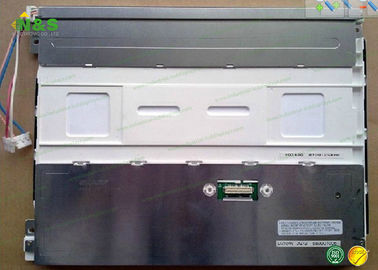

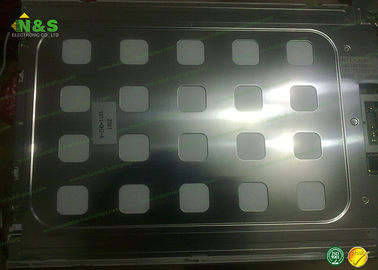

LQ104V1DG71 Picture
