Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ104V1DG64 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ104V1DG64 10.4 inch Antiglare Sharp LCD Panel 211.2×158.4 mm Active Area
LQ104V1DG64 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ104V1DG64 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 246.5×179.4×17.2 mm | |
| Surface : | Antiglare, Hard coating (7H), Antireflection | |
| Brightness : | 450 cd/m² (Typ.) | |
|
600:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
|
Parallel RGB (1 ch, 6-bit) , 31 pins | |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 76 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.110×0.330 mm (H×V) | |
| Pixel Pitch : | 0.330×0.330 mm (H×V) | |
| Weight : | 1.00Kgs (Max.) | |
| Surface : | Antiglare, Hard coating (7H), Antireflection | |
|
211.2×158.4 mm (H×V) | |
| Bezel Area : | 214.6×162.4 mm (H×V) | |
| Outline Dimension : | 246.5×179.4 mm (H×V) | |
| Outline Depth : | 17.2 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7×4.4) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
|
Without | |
| Panel Cover : | With Strengthened Cover Glass |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

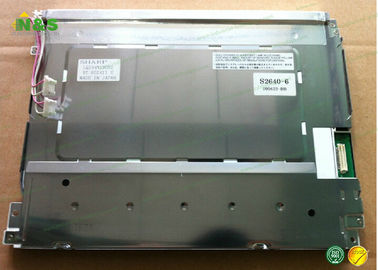

LQ104V1DG64 Picture
