Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ104S1DG61 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ104S1DG61 Sharp LCD Panel 10.4 inch LCM 800×600 420 600:1 262K CCFL TTL
LQ104S1DG61 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ104S1DG61 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 10.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 211.2×158.4 mm | |
| Outline : | 246.5×179.4 mm | |
| Surface : | Antiglare, Hard coating (3H), Antireflection | |
| Brightness : | 420 cd/m² (Typ.) | |
|
600:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) | |
|
60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
|
CMOS (1 ch, 6-bit) , 41 pins | |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 96 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.088×0.264 mm (H×V) | |
| Pixel Pitch : | 0.264×0.264 mm (H×V) | |
| Weight : | 620g (Max.) | |
| Surface : | Antiglare, Hard coating (3H), Antireflection | |
|
211.2×158.4 mm (H×V) | |
| Bezel Area : | 214.6×162.4 mm (H×V) | |
| Outline Dimension : | 246.5×179.4 mm (H×V) | |
| Outline Depth : | 13.7 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-3.4×4.4) | |
| Landscape or Portrait : | Landscape type | |
|
Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

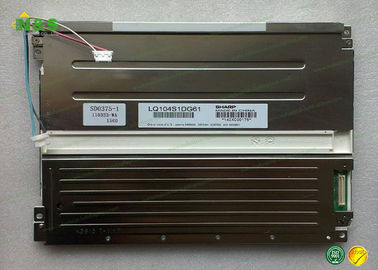

LQ104S1DG61 Picture
