Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ095Y5DR01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 9.5 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ095Y5DR01 Sharp LCD Panel 9.5 inch with 206.4×123.84 mm Active Area
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
LQ095Y5DR01 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ095Y5DR01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 9.5 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 206.4×123.84 mm | |
| Outline : | 229×149 mm | |
| Surface : | ||
| Brightness : | 380 cd/m² (Typ.) | |
|
100:1 (Min.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
|
4 pcs CCFL | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.)(VCC) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| Panel Size : | 9.5 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 98 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.086×0.258 mm (H×V) | |
| Pixel Pitch : | 0.258×0.258 mm (H×V) | |
| Weight : | 475g (Max.) | |
| Active Area : | 206.4×123.84 mm (H×V) | |
|
229×149 mm (H×V) | |
| Outline Depth : | 13.9 (Typ.) mm | |
| Holes & Brackets : | Rear mounting holes (4-Φ2.2) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |

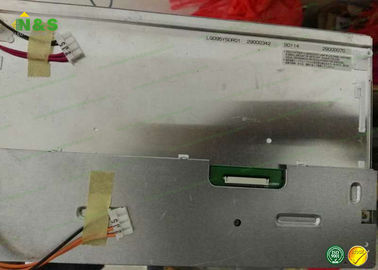

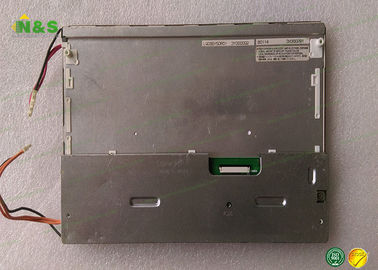

LQ095Y5DR01 Picture
