Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ088H9DZ01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.8 Inch |
| Resolution: | 640(RGB)×240 , HVGA | Display Mode: | TN, Normally White, Transflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ088H9DZ01 8.8 inch Sharp LCD Panel Antiglare LCM 640×240 250 150:1 262K CCFL TTL
LQ088H9DZ01 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ088H9DZ01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.8 inch | |
| Resolution : | 640(RGB)×240 , HVGA | |
|
TN, Normally White, Transflective | |
| Active Area : | 209.28×78.48 mm | |
| Outline : | 231.6×103.3 mm | |
| Surface : | Antiglare | |
| Brightness : | 250 cd/m² (Typ.) | |
|
150:1 (Min.)(Transmissive) 8:1 (Typ.)(Reflective) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 60/60/60/60 (Typ.)(CR≥10) (L/R/U/D) | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 31 pins | |
| Input Voltage : | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| Panel Size : | 8.8 inch | |
| Dot Resolution : | 640(RGB)×240 (HVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 77 PPI | |
| Aspect Ratio : | 8:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.109×0.327 mm (H×V) | |
| Pixel Pitch : | 0.327×0.327 mm (H×V) | |
| Weight : | 370g (Max.) | |
| Surface : | Antiglare | |
|
209.28×78.48 mm (H×V) | |
| Bezel Area : | 214.6×83.9 mm (H×V) | |
| Outline Dimension : | 231.6×103.3 mm (H×V) | |
| Outline Depth : | 14.4 (Typ.) mm | |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

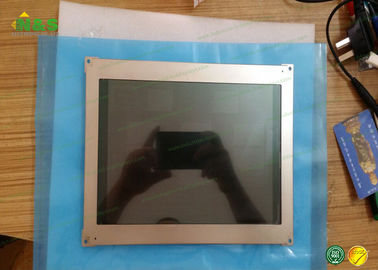

LQ088H9DZ01 Picture
