Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ085Y3DG06 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.5 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
184.8×110.88 mm LQ085Y3DG06 Sharp LCD Panel 8.5 inch Normally White
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
LQ085Y3DG06 Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ085Y3DG06 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.5 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 184.8×110.88 mm | |
| Outline : | 212×134×12.8 mm | |
| Surface : | Antiglare | |
| Brightness : | 260 cd/m² (Typ.) | |
| Contrast Ratio : | 250:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 8/21 (Typ.)(Tr/Td) | |
| Viewing Angle : | 55/55/60/40 (Typ.)(CR≥10) (L/R/U/D) | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.)(VCC) |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Panel Size : | 8.5 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 109 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.077×0.231 mm (H×V) | |
| Pixel Pitch : | 0.231×0.231 mm (H×V) | |
| Weight : | 370g (Typ.) | |
| Surface : | Antiglare | |
| Active Area : | 184.8×110.88 mm (H×V) | |
| Outline Dimension : | 212×134 mm (H×V) | |
| Outline Depth : | 11.0/12.8 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

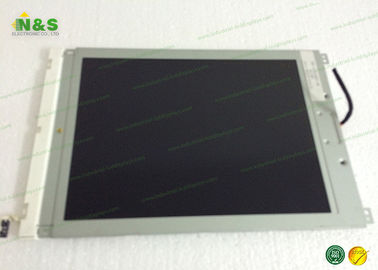

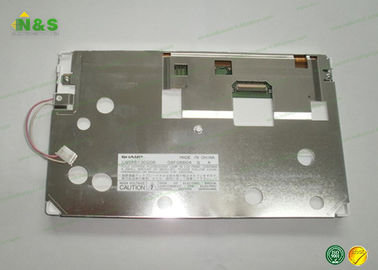

LQ085Y3DG06 Picture
