Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ085Y3DG01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.5 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ085Y3DG01 Antiglare Sharp LCD Panel 8.5 inch with 184.8×110.88 mm
LQ085Y3DG01 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ085Y3DG01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.5 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 184.8×110.88 mm | |
| Outline : | 222.7×134×12.5 mm | |
| Surface : | Antiglare | |
| Brightness : | 200 cd/m² (Min.) | |
| Contrast Ratio : | 250:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 55/55/60/40 (Typ.)(CR≥10) (L/R/U/D) | |
| Lamp Type : | 1 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 8.5 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 109 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.077×0.231 mm (H×V) | |
| Pixel Pitch : | 0.231×0.231 mm (H×V) | |
| Weight : | 420g (Typ.) | |
| Surface : | Antiglare | |
| Active Area : | 184.8×110.88 mm (H×V) | |
| Bezel Area : | 189.8×116.0 mm (H×V) | |
| Outline Dimension : | 222.7×134 mm (H×V) | |
| Outline Depth : | 12.5 (Max.) mm | |
| Holes & Brackets : | Face mounting holes (4 pcs) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
Packing & Delivery for our LCD Screen Panel Replacements:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

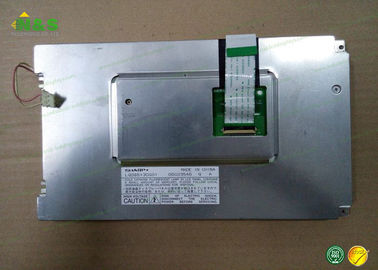

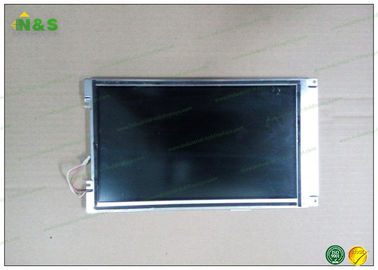

LQ085Y3DG01 Picture
