Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 8.4 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Surface: | Antiglare, Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| Highlight: | auo lcd screen,auo lcd display |
||
G084SN03 V0 8.4 inch AUO LCD Panel Normally White with 170.4×127.8 mm
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 215±10g |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.8×131.2 mm (H×V) |
| Outline Dimension : | 203×142.5 mm (H×V) |
| Outline Depth : | 6.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| A060SE02 V1 | AUO | 6.0" | 800×600 |
| A090XE01 V6 | AUO | 9.0" | 1024×768 |
| A090XE01 V5 | AUO | 9.0" | 1024×768 |
| A043SE01 V3 | AUO | 4.3" | 600×800 |
| H283QN00 V6 | AUO | 2.8" | 240×320 |
| M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
| Display Mode : |
|
|
| Brightness : | 220 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 10/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/65/45 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 12 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.60 (Max.)(9 points) | |
| Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.

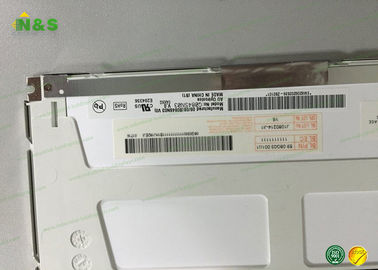

G084SN03 V0 Picture
