Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ084V2DS01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ084V2DS01 Hard coating Sharp LCD Panel 8.4 inch for Industrial Application
LQ084V2DS01 Product Information
| Panel Brand : | SHARP | |
| Panel Model : | LQ084V2DS01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.4 inch | |
| Resolution : | 640(RGB)×480 , VGA | |
|
TN, Normally White, Reflective | |
| Active Area : | 170.88×129.6 mm | |
| Outline : | 202×149.5 mm | |
| Surface : | Antiglare, Hard coating (2H), Antireflection | |
| Brightness : | ||
| Contrast Ratio : | 10:1 (Typ.)(Reflective) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 50/50/50/50 (Typ.)(CR≥2) (L/R/U/D) | |
| Lamp Type : | No B/L | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.)(VCC) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 640(RGB)×480 (VGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 94 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.089×0.270 mm (H×V) | |
| Pixel Pitch : | 0.267×0.270 mm (H×V) | |
| Weight : | 175±10g | |
| Surface : | Antiglare, Hard coating (2H), Antireflection | |
| Active Area : | 170.88×129.6 mm (H×V) | |
| Bezel Area : | 175.9×134.6 mm (H×V) | |
| Outline Dimension : | 202×149.5 mm (H×V) | |
| Outline Depth : | 5.3 (Max.) mm | |
| Holes & Brackets : | Face mounting holes | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

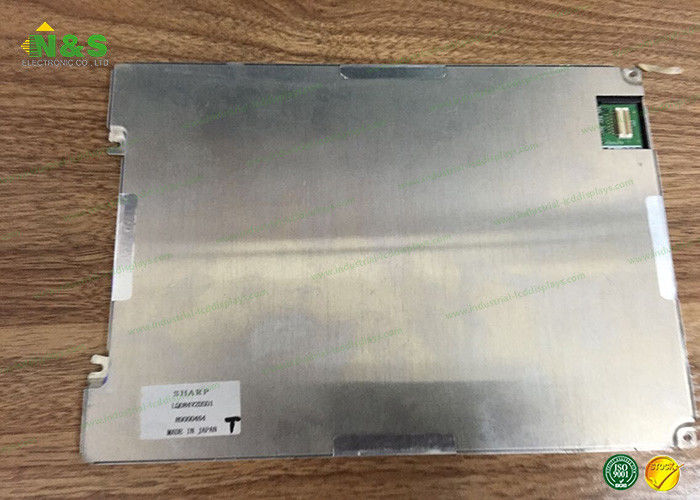

LQ084V2DS01 Picture
