Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ084S3DG01R |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.4 Inch |
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
170.4×127.8 mm LQ084S3DG01R Sharp LCD Panel 8.4 inch with 170.4×127.8 mm
LQ084S3DG01R Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ084S3DG01R | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.4 inch | |
| Resolution : | 800(RGB)×600 , SVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 170.4×127.8 mm | |
| Outline : | 199.5×149.5 mm | |
| Surface : | ||
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 250:1 (Typ.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 20/40 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥5) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 30 pins | |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 8.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 119 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.071×0.213 mm (H×V) | |
| Pixel Pitch : | 0.213×0.213 mm (H×V) | |
| Weight : | 405g (Max.) | |
| Active Area : | 170.4×127.8 mm (H×V) | |
| Bezel Area : | 175.15×133.1 mm (H×V) | |
| Outline Dimension : | 199.5×149.5 mm (H×V) | |
| Outline Depth : | 11.6 (Typ.) mm | |
| Holes & Brackets : | Face mounting holes (4-Ф3.2) on slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.

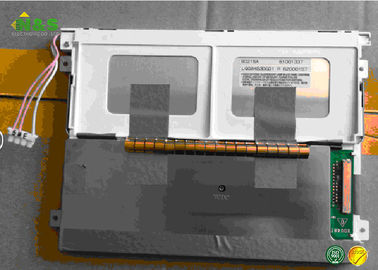

LQ084S3DG01R Picture
