Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080Y5DZ30A |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Hard coating LQ080Y5DZ30A Sharp LCD PanelNormally White with 230.4×138.24 mm
LQ080Y5DZ30A Specification
| Panel Brand : | SHARP | |
| Panel Model : | LQ080Y5DZ30A | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
Normally Black, Transmissive | |
| Active Area : | 174×104.4 mm | |
| Outline : | 191.8×121.3 mm | |
| Surface : | ||
| Brightness : | ||
| Contrast Ratio : | ||
| Display Colors : | 262K (6-bit) | |
| Response Time : | ||
| Viewing Angle : | ||
| Lamp Type : | WLED | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) | |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) | |
| Weight : | 470g (Typ.) | |
| Active Area : | 174×104.4 mm (H×V) | |
| Outline Dimension : | 191.8×121.3 mm (H×V) | |
| Outline Depth : | 16.49 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded |

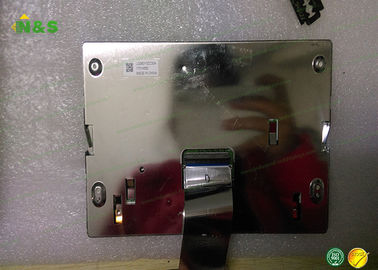

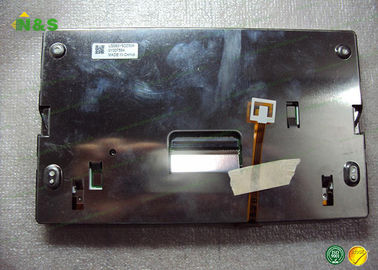

LQ080Y5DZ30A Picture
