Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080Y5DR04 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
174×104.4 mm LQ080Y5DR04 Sharp LCD Panel 8.0 inch for Automotive Display
LQ080Y5DR04 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ080Y5DR04 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
| TN, Normally White, Transmissive | |
| Active Area : | 174×104.4 mm | |
| Outline : | 190×120 mm | |
| Surface : | ||
| Brightness : | 480 cd/m² (Typ.) | |
| Contrast Ratio : | ||
| Display Colors : | 262K (6-bit) | |
| Response Time : | ||
| Viewing Angle : | ||
| Lamp Type : | WLED | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) | |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) | |
| Weight : | 290g (Max.) | |
| Active Area : | 174×104.4 mm (H×V) | |
| Outline Dimension : | 190×120 mm (H×V) | |
| Outline Depth : | 8.0 (Typ.) mm | |
| Landscape or Portrait : | Landscape type |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

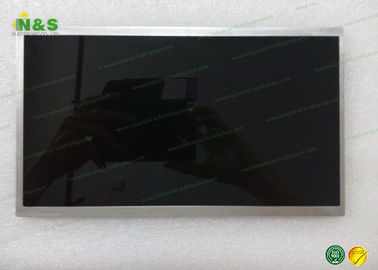

LQ080Y5DR04 Picture
