Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080Y5DR02 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Antireflection LQ080Y5DR02 Sharp LCD Panel 8.0 inch LCM 800×480 625 100:1 262K CCFL TTL
LQ080Y5DR02 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ080Y5DR02 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 174×104.4 mm | |
| Outline : | 190×120 mm | |
| Surface : | Antireflection | |
| Brightness : | 625 cd/m² (Typ.) | |
| Contrast Ratio : | 100:1 (Min.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.)(VCC) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) | |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) | |
| Weight : | 385g (Typ.) | |
| Surface : | Antireflection | |
| Active Area : | 174×104.4 mm (H×V) | |
| Outline Dimension : | 190×120 mm (H×V) | |
| Outline Depth : | 13.0 (Typ.) mm | |
| Holes & Brackets : | Rear mounting holes | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

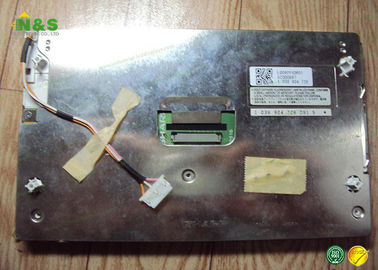

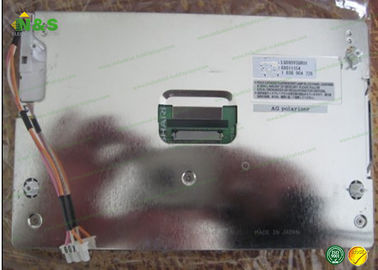

LQ080Y5DR02 Picture
