Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080Y5DR01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ080Y5DR01 Sharp LCD Panel 8.0 inch LCM 800×480 625 100:1 262K CCFL TTL
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
LQ080Y5DR01 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ080Y5DR01 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
|
TN, Normally White, Transmissive | |
| Active Area : | 174×104.4 mm | |
| Outline : | 190×120 mm | |
| Surface : | Antiglare, Antireflection | |
| Brightness : | 625 cd/m² (Typ.) | |
| Contrast Ratio : | 100:1 (Min.) | |
| Display Colors : | 262K (6-bit) | |
| Response Time : | 30/50 (Typ.)(Tr/Td) | |
| Viewing Angle : | 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Frequency : | 60Hz | |
| Lamp Type : | 2 pcs CCFL Without Driver | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 40 pins | |
| Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
|
Flat Rectangle Display | |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) | |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) | |
| Weight : | 392g (Typ.) | |
| Surface : | Antiglare, Antireflection | |
| Active Area : | 174×104.4 mm (H×V) | |
| Outline Dimension : | 190×120 mm (H×V) | |
| Outline Depth : | 13.0 (Typ.) mm | |
| Holes & Brackets : | Rear mounting Pole | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

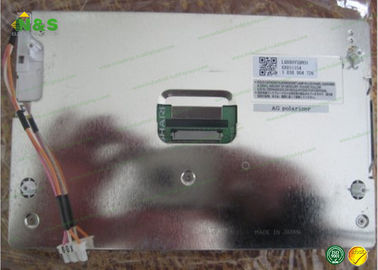

LQ080Y5DR01 Picture
