Product Details:
|
| Panel Brand: | SHARP | Panel Model: | LQ080Y5DE30 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ080Y5DE30 Sharp LCD Panel 8.0 inch LCM 800×480 320 262K WLED TTL
LQ080Y5DE30 Detail
| Panel Brand : | SHARP | |
| Panel Model : | LQ080Y5DE30 | |
| Panel Type : | a-Si TFT-LCD , LCM | |
| Panel Size : | 8.0 inch | |
| Resolution : | 800(RGB)×480 , WVGA | |
| TN, Normally White, Transmissive | |
| Active Area : | 174×104.4 mm | |
| Outline : | 190×120 mm | |
| Surface : | ||
| Brightness : | 320 cd/m² (Typ.) | |
| Contrast Ratio : | ||
| Display Colors : | 262K (6-bit) | |
| Response Time : | ||
| Viewing Angle : | ||
| Lamp Type : | WLED | |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) |
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 800(RGB)×480 (WVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 116 PPI | |
| Aspect Ratio : | 15:9 (H:V) | |
| Flat Rectangle Display | |
| Dot Pitch : | 0.0725×0.2175 mm (H×V) | |
| Pixel Pitch : | 0.2175×0.2175 mm (H×V) | |
| Weight : | 439g (Typ.) | |
| Active Area : | 174×104.4 mm (H×V) | |
| Outline Dimension : | 190×120 mm (H×V) | |
| Outline Depth : | 12.75 (Typ.) mm | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Embeded |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

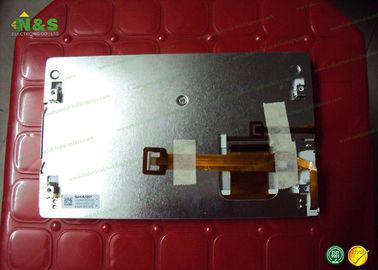

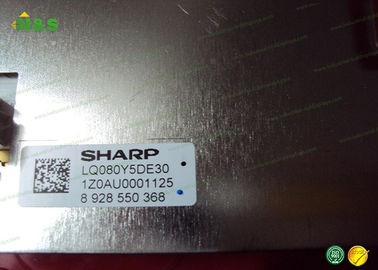

LQ080Y5DE30 Picture
