Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
12.1 inch LQ121S1LH01 Sharp LCD Panel SHARP Normally White LCM 800×600
LT121AC62000 Specification
| Panel Size : | 12.1 inch | ||||||||
| Dot Resolution : | 1024(RGB)×768 (XGA) | ||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||
| Pixel Density : | 105 PPI | ||||||||
| Aspect Ratio : | 4:3 (H:V) | ||||||||
| Form Factor : | Flat Rectangle Display | ||||||||
| Dot Pitch : |
|
||||||||
| Pixel Pitch : |
|
||||||||
| Weight : |
|
||||||||
| Surface : | Antiglare | ||||||||
|
245.76×184.32 mm (H×V) | ||||||||
| Outline Dimension : | 255×198 mm (H×V) | ||||||||
| Outline Depth : | 4.385±0.3 mm | ||||||||
| Holes & Brackets : | Without | ||||||||
| Landscape or Portrait : | Landscape type | ||||||||
| Touch Panel : |
|
||||||||
| Display Mode : | TN, Normally White, Transmissive | ||||||||
| Brightness : | 280 cd/m² (Typ.) | ||||||||
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) | ||||||||
| Display Color : | 262K (6-bit) | ||||||||
| Response Time : | 15/30 (Typ.)(Tr/Td) | ||||||||
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

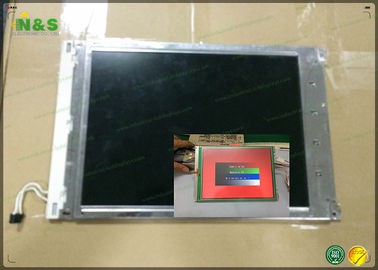

LT121AC62000 Picture
